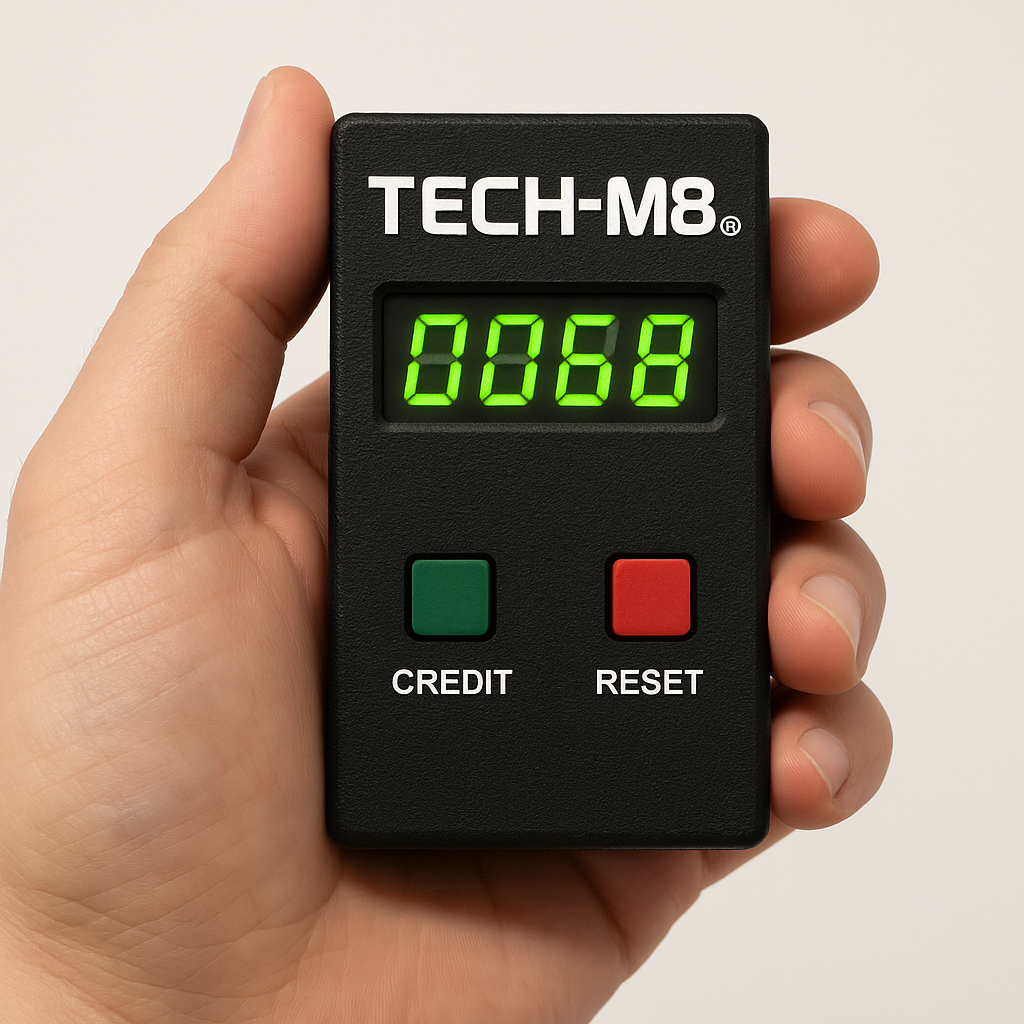

TECH-M8™
Professional Arcade Diagnostic Tool
Estimated lead time: 1–2 weeks
Developed by industry veterans, TECH-M8™ allows arcade technicians and operators to instantly verify machine credit and ticket signals directly from the game harness before connecting card systems.
- Instant credit signal testing
- Verify ticket payout outputs
- Test game harness connections before card system installation
- Portable handheld diagnostic device for arcade technicians
- Designed for field service, installs, and troubleshooting
Built-to-order units are assembled and tested prior to shipment.
How TECH-M8™ Works
TECH-M8™ allows technicians to verify arcade machine signals before connecting a card system. The tool interfaces with the machine using the included harnesses to confirm that credit and ticket signals are being generated correctly.
Direct Machine Interface Testing
Machine Interface
Direct Machine Connection
Signal Verification
Card System Connector Testing
Card System Connector
Intercard / Embed / Amusement Connect
Signal Verification
The included Universal Card System Harness Adapter allows TECH-M8™ to interface with the connector that normally plugs into the card reader system. This makes it possible to confirm that the game is outputting the correct signals before connecting it to a reader.
Intercard, Embed, and Amusement Connect are trademarks of their respective owners and are referenced for compatibility purposes only.
Compatible With Leading Arcade Card Systems
Intercard®, Embed®, and Amusement Connect® are trademarks of their respective owners. MaxPlay Integrated Payment Solutions products are designed for compatibility with these systems but are not affiliated with or endorsed by these companies.
